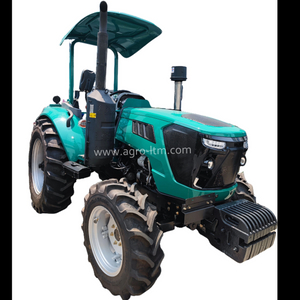

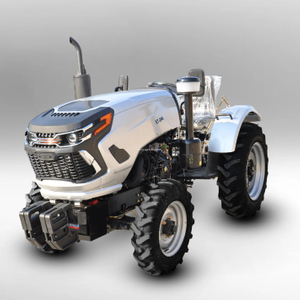

LTM 504HP

Medium tractor

Power Range: tractor 50-70HP
Model : LTM 504,LTM 604,LTM 704
Diesel Engine: 4 Cylinder Diesel Engine
Drive Method: 4WD
Tyre size: 6.0-16/9.5-24; 7.5-16/11.2-24,common or paddy tyre
Transmission Method: Shaft Transmission
color: as you like
cabin:heat and fan cabin
Clutch: Double Stage Clutch
Gearbox: 8F+2R gear/8F+8R Shuttle Shifts
Steering Method : Hydraulic Steering
PTO Speed: 540/1000 r/min Optional

Quantity:
Availability:





Inquire Add to Basket

Model:
LTM 504
Brand:
LTM

Product Description

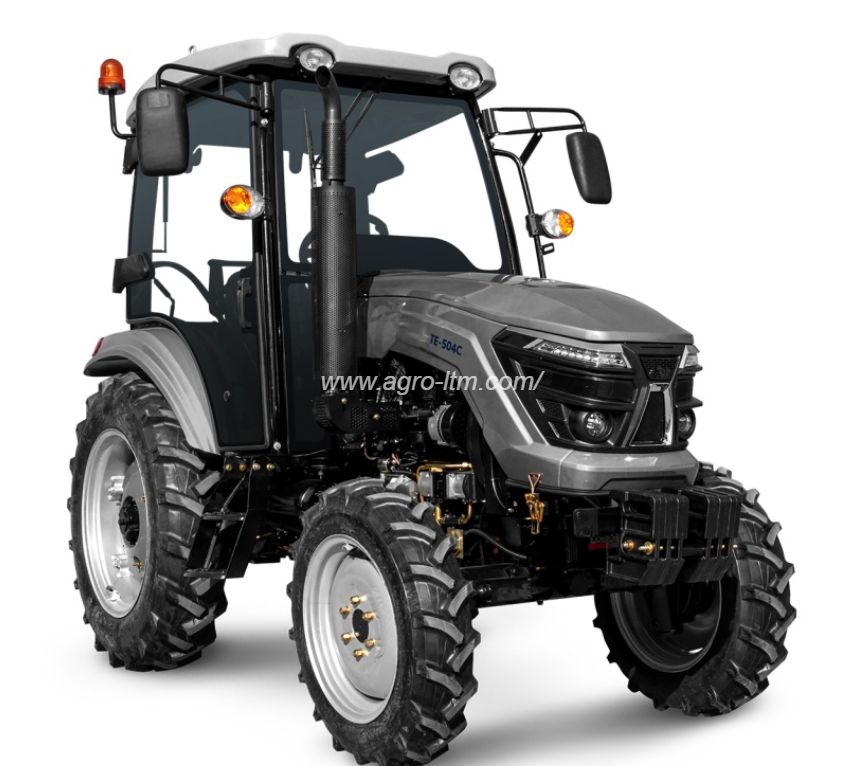

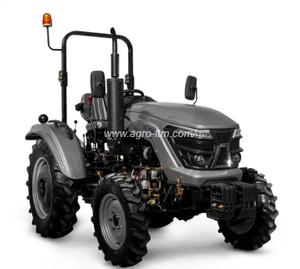

Medium tractor-TE model

Products model	TE-404	TE-454	TE-504	TE-604
Wheel drive	4x4 Wheel type
LWH(mm)	3450x1550x1860
Weight(KG)	1350-1500
Front wheel tread(mm)	850,960,1000,1100,1200,1300, adjustable
Rear wheel tread(mm)	960-1300 unlimited adjustable
Wheel base(mm)	1750
Minimum clearance	330(340)
Tyre size	6.5-16/9.5-24(Optional : 7.5-16/11.2-24)
Gear Shifts	8+2(8+8)
Engine Brand	LDdiesel engine
Type	Water cooled, Vertical,4 stroke and direct injection
Rated power(kw)	29.4	33.1	36.7	44.1
Rated revolution(r/m)	2300/2400
Transmission box	(4+1)x2 shifts or (4+4)x2
Clutch	Single chip,Dry friction and single& double stage clutch
Start way	Electric start
PTO	6 spline/540/720RPM or 540/760RPM
Suspension	Three point linkage/I level
Optional configuration	Ropes&sunshade/valves/ Luxury seat/Flat Tyre etc
