| Quantity: | |
|---|---|
LTM

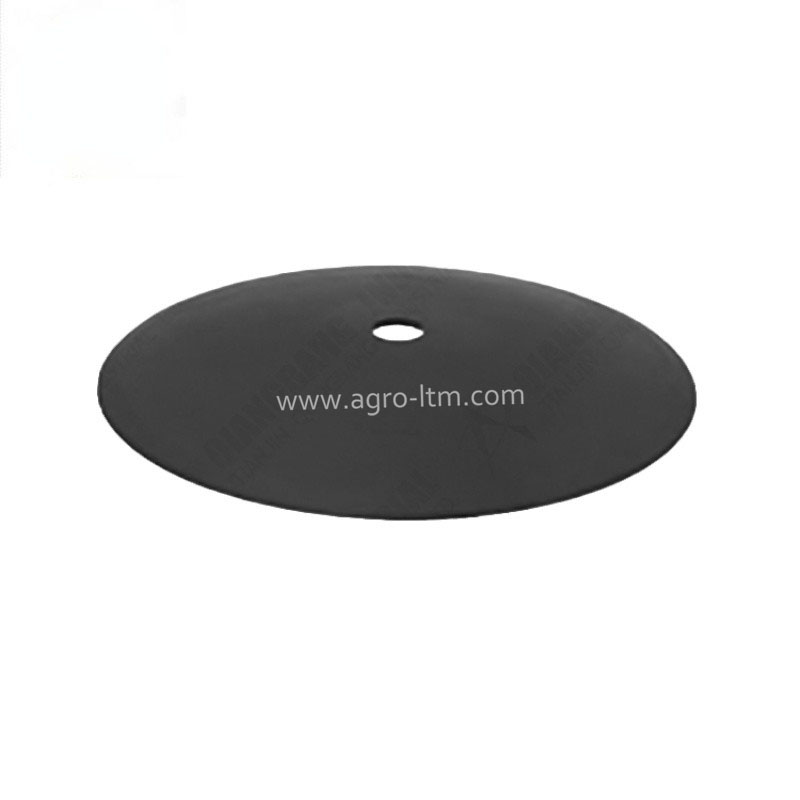

Main specifications of the disc blades:
Material: | 65Mn,Boron steel |
Hardness: | HRC38-45, HRC43-48 |
Thickness: | 3.0-12.5mm |
Size/dimension: | 12-44(300mm-1120mm) |
Edge of Disc Blade: | Round or Notched. |

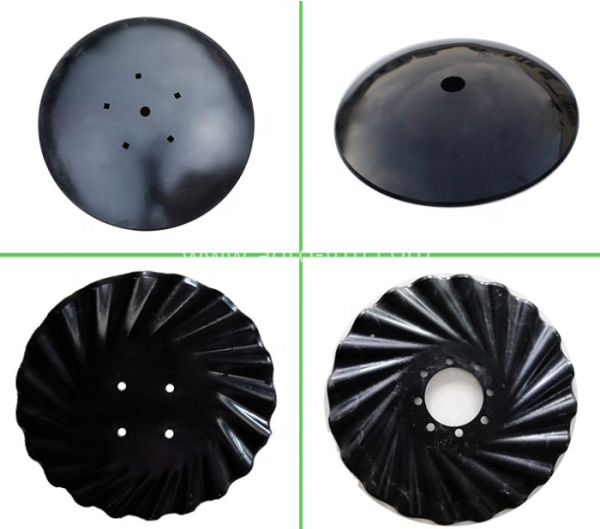

Shape: | Flat,Concave or Wavy |
MOQ: | 1000 pcs |
Production Capacity: | 7 Million pcs annually |
Surface treatment: | Painting |
Colors: | Blue or black ( matt or bright), according to your order |
Hole Type: | Square, Round, Hexagon, Clover Leaf, Optional |
Hole Size: | 27x27mm, 42x42mm, optional |
Working Depth: | 200mm, 300mm |
Working Width: | 3.4M ~ 6.2M |
Packing: | Non-fumigation wooden case, metal case according policy of different regions |
Feature /Characteristic: | Highest wear life due to special edge making process |

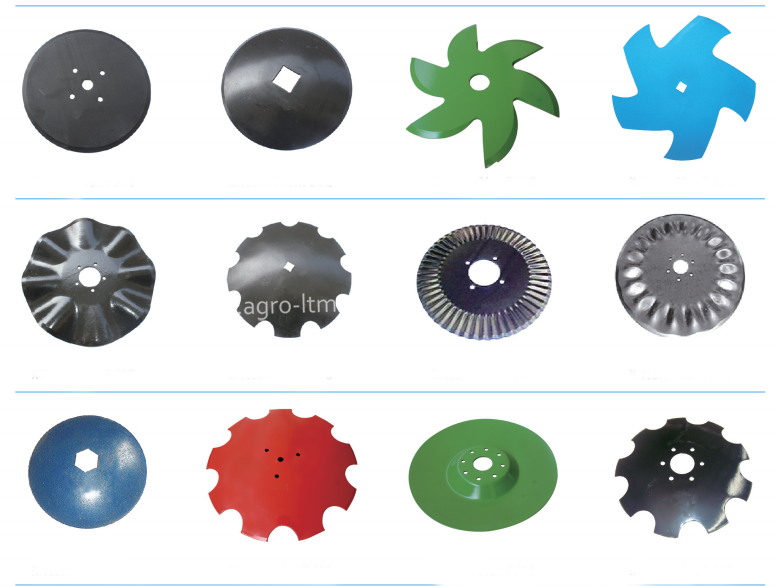

We can supply all various of discs according to customers’ drawings and samples:
Diameter | Overall dimension | Thickness | |
mm | inch | mm | mm |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3; 4 |
460 | 18 | 38~60 | 3; 4 |
480 | 19 | 57 | 3; 4 |
510 | 20 | 44~63 | 3; 4; 5 |
535 | 21 | 63 | 3; 4; 5 |
560 | 22 | 60~85 | 4; 5; 6 |
585 | 23 | 75~90 | 4; 5; 6 |
610 | 24 | 75~95 | 4; 5; 6 |
660 | 26 | 86~115 | 5; 6; 7; 8 |
710 | 28 | 100~130 | 5; 6; 7; 8 |
760 | 30 | 120~135 | 6; 7; 8; 10; 12 |
810 | 32 | 120~140 | 8; 10; 12 |
Main specifications of the disc blades:
Material: | 65Mn,Boron steel |
Hardness: | HRC38-45, HRC43-48 |
Thickness: | 3.0-12.5mm |
Size/dimension: | 12-44(300mm-1120mm) |
Edge of Disc Blade: | Round or Notched. |
Shape: | Flat,Concave or Wavy |
MOQ: | 1000 pcs |
Production Capacity: | 7 Million pcs annually |
Surface treatment: | Painting |
Colors: | Blue or black ( matt or bright), according to your order |
Hole Type: | Square, Round, Hexagon, Clover Leaf, Optional |
Hole Size: | 27x27mm, 42x42mm, optional |
Working Depth: | 200mm, 300mm |
Working Width: | 3.4M ~ 6.2M |
Packing: | Non-fumigation wooden case, metal case according policy of different regions |
Feature /Characteristic: | Highest wear life due to special edge making process |
We can supply all various of discs according to customers’ drawings and samples:
Diameter | Overall dimension | Thickness | |
mm | inch | mm | mm |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3; 4 |
460 | 18 | 38~60 | 3; 4 |
480 | 19 | 57 | 3; 4 |
510 | 20 | 44~63 | 3; 4; 5 |
535 | 21 | 63 | 3; 4; 5 |
560 | 22 | 60~85 | 4; 5; 6 |
585 | 23 | 75~90 | 4; 5; 6 |
610 | 24 | 75~95 | 4; 5; 6 |
660 | 26 | 86~115 | 5; 6; 7; 8 |
710 | 28 | 100~130 | 5; 6; 7; 8 |
760 | 30 | 120~135 | 6; 7; 8; 10; 12 |
810 | 32 | 120~140 | 8; 10; 12 |
