Tractor Front Loading

Advantages of LTM tractor front loading:
Versatility: Front-loading tractors can complete a variety of tasks, such as loading and unloading cargo, leveling land, clearing garbage, digging trenches, etc., improving the utilization rate of the tractor.
Improve efficiency: Front loading of tractors can quickly complete operations such as loading and unloading goods, improving operating efficiency and saving time and manpower.
Reduce costs: Front loading of tractors can reduce the cost of manual loading and unloading of goods and reduce operating costs.
Improved safety: Front loading of the tractor can prevent operators from direct contact with materials and improve operating safety.
Strong adaptability: The front loading of the tractor can adapt to different operating environments, such as flat land, rugged mountains, etc.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LTM

Product Description

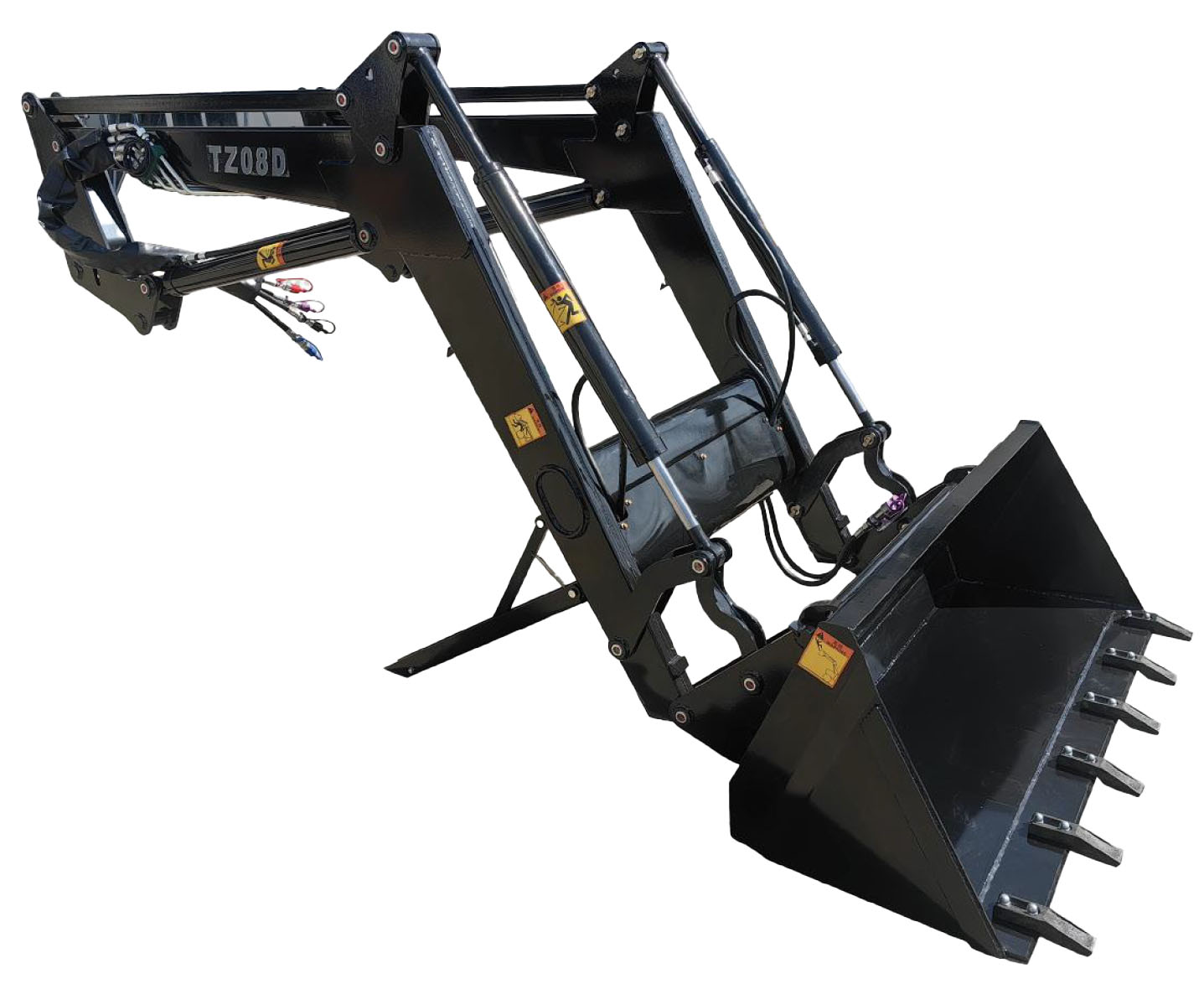

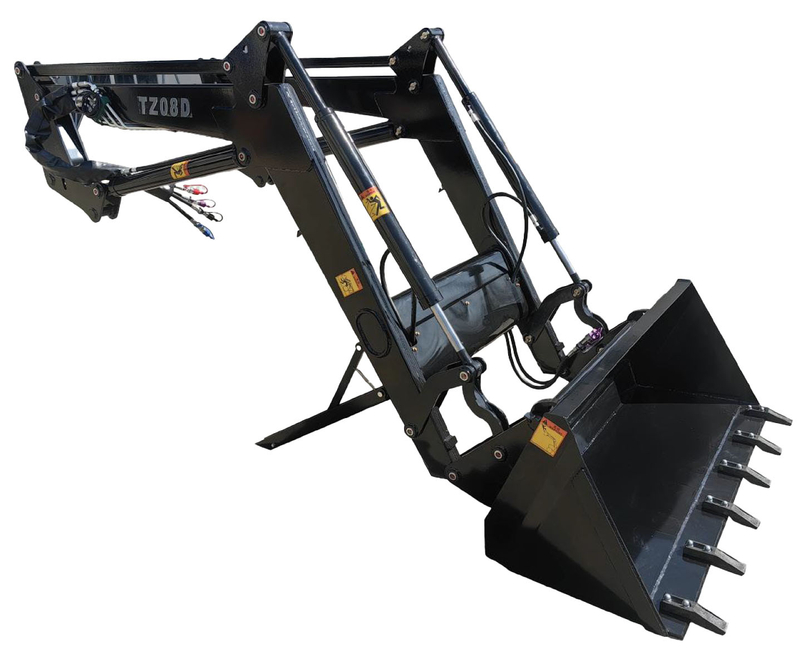

Tractor front loader

Tractor front loader is an auxiliary equipment installed on the front of the tractor. It can scoop up and transport various materials like a shovel, such as soil, sand, stone, fertilizer, feed, etc. It is indispensable in modern agricultural production. Multifunctional tool.

Tractor front loading options:

Type of operation:

Choose an appropriate tractor front loader according to the type of operation, for example, choose a large-capacity bucket for loading and unloading goods, and choose a flat bucket for flat land.

Tractor model:

The tractor front loader must match the tractor model to ensure safe installation and use.

Working environment:

Choose an appropriate tractor front loader according to the working environment, such as a light bucket for flat land and a heavy bucket for rugged mountainous terrain.

Budget: Choose a suitable tractor front loader based on your budget. The prices of different types of tractor front loaders vary greatly.

Use of tractor front loading:

Installation:

Install strictly according to the instructions to ensure the installation is firm.

Operation:

Be familiar with the operation method of tractor front loading and perform safe operation.

Maintenance:

Perform regular maintenance on the tractor front loader to keep the equipment in good condition.

Loader Model			TZ-03D	TZ-04D	TZ-06D	TZ-08D	TZ-10D	TZ-12D
Matching Tractor	hp		20-50	40-75	60-90	80-110	90-20	110-160
Lifting Height	H	mm	2560	2750	3020	3410	3720	3980
Dumping Height	A	mm	1850	2110	2380	2490	2730	3010
Overloading Height	L	mm	2380	2570	2840	3230	3500	3780
Dumping Distance	W	mm	510	610	650	700	750	900
Ground Clearance	B	mm	1210	1370	1510	1640	1790	1940
Max. Tip in Angle	X	degree°	46			53
Tip out Angle	Z	degree°	57
Crowd angle	V	degree°	134				146
Digging Depth	S	mm	90		110	130	170	190
Lifting Force	Q1	kg	2220	2140	2150	2000	2300	2400
Lifting Force	Q2	kg	1474	1321	1286	1187	1452	1690
Bucket Type			40P140	40P150	40P170	80P180	80P200	80P220
Bucket Width		mm	1400	1500	1700	1800	2000	2200
Bucket Capacity		m³	0.22	0.24	0.32	0.47	0.52	0.6
Rated Lifting Capacity		kg	300	400	600	800	1000	1200
