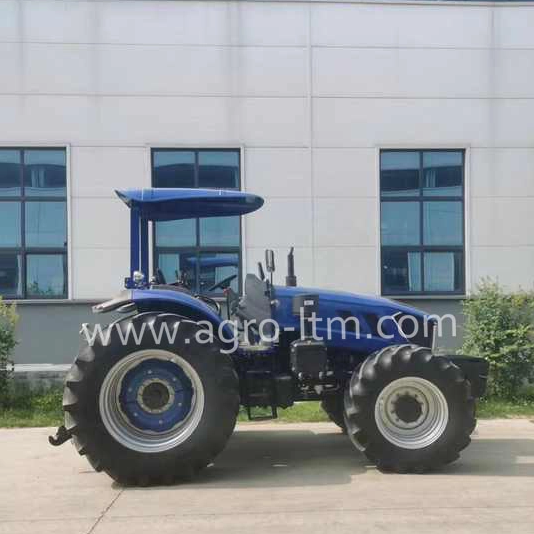

LTM 1604HP

1. tractor is designed and manufactured for dry land and multifunctional applications.
2. Using the engine that satisfies the EuroⅡemission standards, torque reserve coefficient
≥35%, the traction force up to 21.3kn. Synchronizer 16F+8R gear, easy to shift; Body
appearance upgrade, high handling comfort.
3. Optional LUK clutch, the United States Actuant instrument, strengthen front axle and
chassis; Key parts and components are purchased from all over the world with High reliability.
Multiple tire options; Optional internal and external air filter; upper exhaust; Single optional
pipeline or double-pipeline air brake; Main and auxiliary dual tanks capacity up to 145L
(optional 90L iron fuel tank)
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
  • LTM 1604

  • LTM

QUOTATION LIST FOR 1604 TRACTOR


Item

Unit

Parameter

Engine

/

/

Model

/

Yuchai or weichai

Horse power

HP

160

Displacement

L

7.3

Torque

N M

>=580

Transmission

/

/

Gearshift

/

16+8

Technical route

/

Synchronizer shifts

Speed range

Km/h

1.65-35.44

PTO speed

r/min

540/1000rpm

Hydraulic





Lifting power

KN

33

Three-point suspension type

/

Category II

Hydraulic output flow

L/min

63

Number of multi-way valves

/

3

Parameter





Length*width*height

mm

5060x2285x3100

Wheelbase

mm

2700

Ground clearance

mm

470

Turning radius

m

4.4-5

Minimum use quality

kg

5500

Tire size

/

14.9-26/18.4-38
