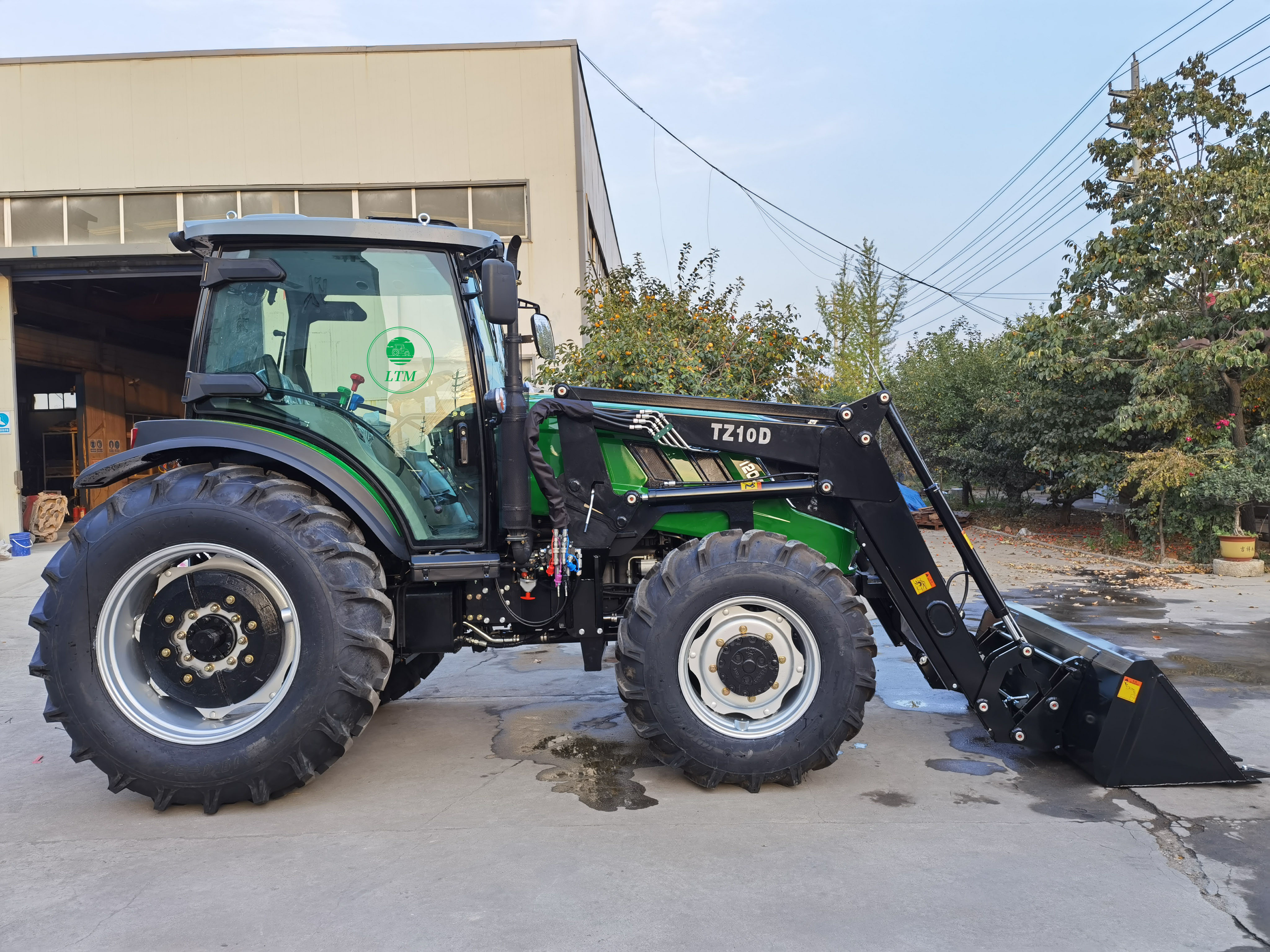

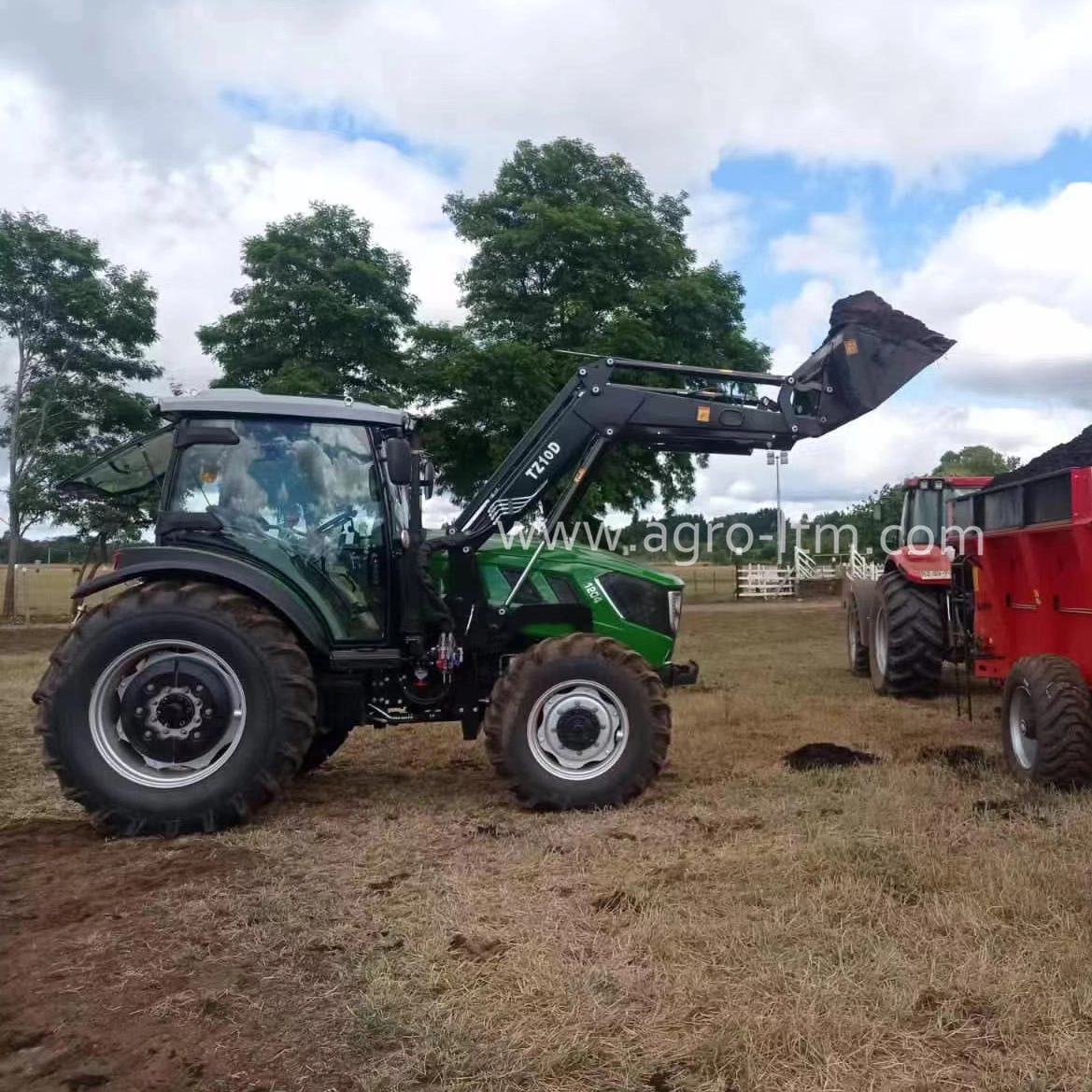

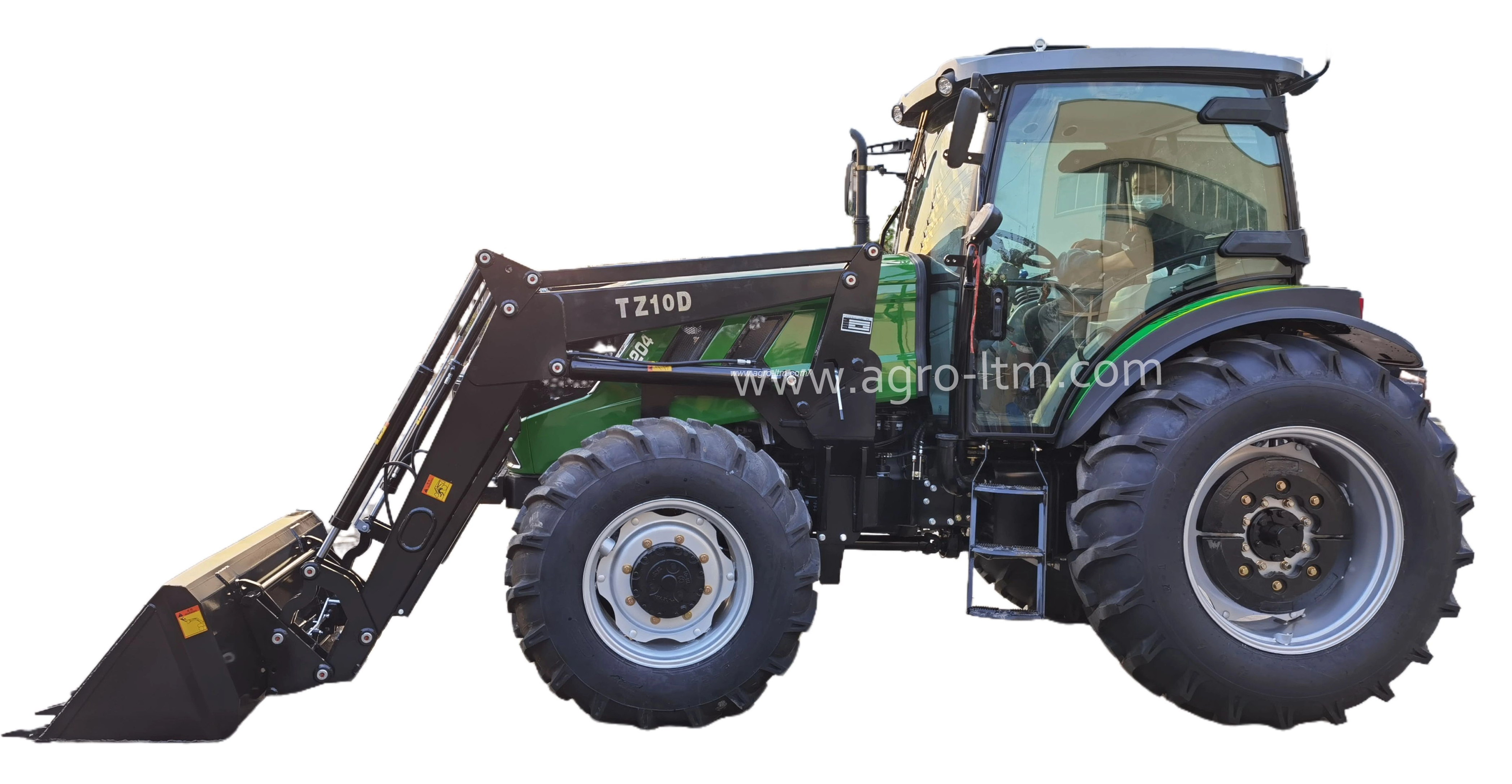

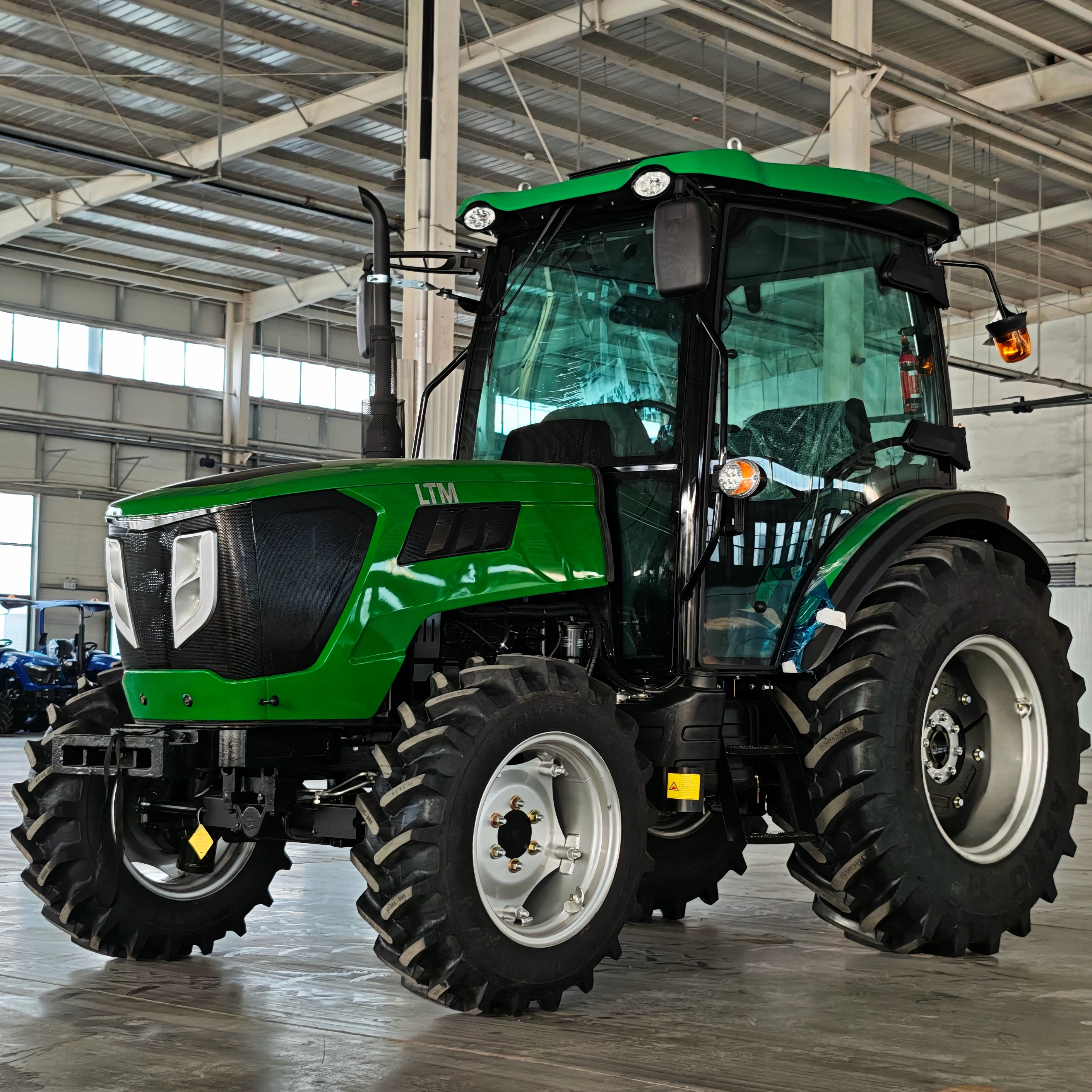

LTM 1204HP

1. tractor is designed and manufactured for dry land and multifunctional applications.
2. Using the engine that satisfies the EuroⅡemission standards, torque reserve coefficient
≥35%, the traction force up to 21.3kn. Synchronizer 16F+8R gear, easy to shift; Body
appearance upgrade, high handling comfort.
3. Optional LUK clutch, the United States Actuant instrument, strengthen front axle and
chassis; Key parts and components are purchased from all over the world with High reliability.
Multiple tire options; Optional internal and external air filter; upper exhaust; Single optional
pipeline or double-pipeline air brake; Main and auxiliary dual tanks capacity up to 145L
(optional 90L iron fuel tank)

Quantity:
Availability:





Inquire Add to Basket

Model:
LTM 1204HP
Brand:
LTM

Product Description

QUOTATION LIST FOR LTM 1204 TRACTOR

Tractor Parameters	Model		1204
	Drive Type		4WD
	Overall Dimensions L×W×H(mm):		4750x2100x2950
	Wheel Track (mm)	Front	1630-1950
		Rear	1620-2420
	Wheel Bass(mm)		2340
	Ground Clearance (mm)		400
	Rated Traction Force(N)		15000
	Construction Mass(kg)		4500
	Theoretical Speed (km/h)	Forward	2.46—32.73
		Reverse	2.15—28.69
Engine Specifications	Model		LR4M5Z-T153X-U2
	Type		4-Cylinder Vertical,water cooled,4 stroke cycle
	Rated Power(kw/hp)		92/125
	Rated Speed (rpm)		2200
	Bore×Stroke (mm)		90×100
	Total Displacement(L)		5
Drive System	Clutch		12" dual-stage
	Gear Box		(1+1)×4x3
Traveling Mechanism	Tyre	Front	12.4-24
		Rear	16.9-34
	Steering Gear		Full Hydraulic Steering
	Brake		Disc type
Working Device	Hydraulic System	Lifting Capacity at 610mm Behind Lift Point (N)	15000
		3-Point Suspension	Category:II
	P.T.O Shaft	Rotating Speed (rpm)	540/1000
		Spline Size	6-∮35Rectangular Spline
