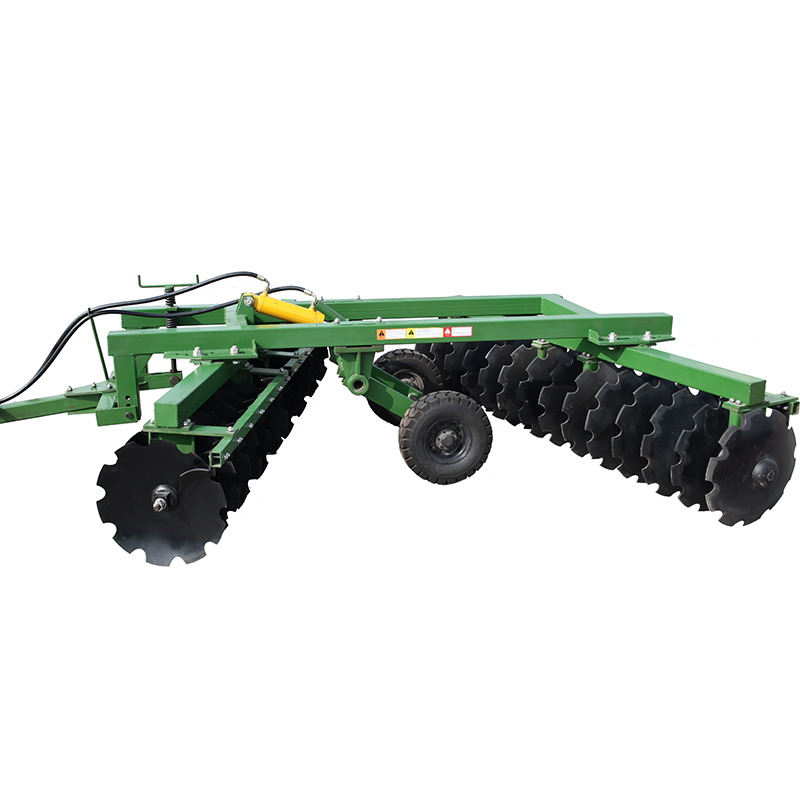

Trailed Heavy-duty Off-set Disc Harrow
The 1BZ series heavy-duty off-set disc harrow is mainly used for cleaning away stubble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil field, it can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of field.
Model | 1BZ-2.0 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 | 1BZ-4.4 | 1BZ-5.3 |
Working Width (m) | 2.0 | 2.2 | 2.5 | 3.0 | 3.4 | 4.0 | 4.4 | 5.3 |
Working Depth (mm) | 200 | |||||||
Disc Spacing (mm) | 230 | |||||||
Number of Disc (Pcs) | 18 | 20 | 24 | 28 | 32 | 36 | 40 | 48 |
Size of Disc (mm) | 660x5 | |||||||
Ground Clearance (mm) | >160 | |||||||
Matched Power (hp) | 65-80 | 75-90 | 80-100 | 90-120 | 100-140 | 130-165 | 140-180 | 180-220 |
Linkage | Trailed | |||||||
Model | unit | 1BZ-3.9 | 1BZ-4.4 | 1BZ-5.3 | 1BZ-6.2 |
Overall size | cm | 582*418*136 | 582*465*136 | 716*288*150 | 750*656*150 |
Weight | kg | 2400-2450 | 2600-2650 | 3250-3300 | 3750-3800 |
Working width | m | 3.9 | 4.4 | 5.3 | 6.2 |
Working depth | cm | 20 | |||
Disc space | mm | 230 | |||
Qty. of disc | pc | 36 | 40 | 48 | 56 |
Dia. Of disc | mm | 660 | |||
Ground clearance | mm | >160 | |||
Productivity | ha/h | 2.4 | 3 | 4 | 5 |
Matched power | hp | 120-150 | 130-150 | 150-180 | 160-180 |
