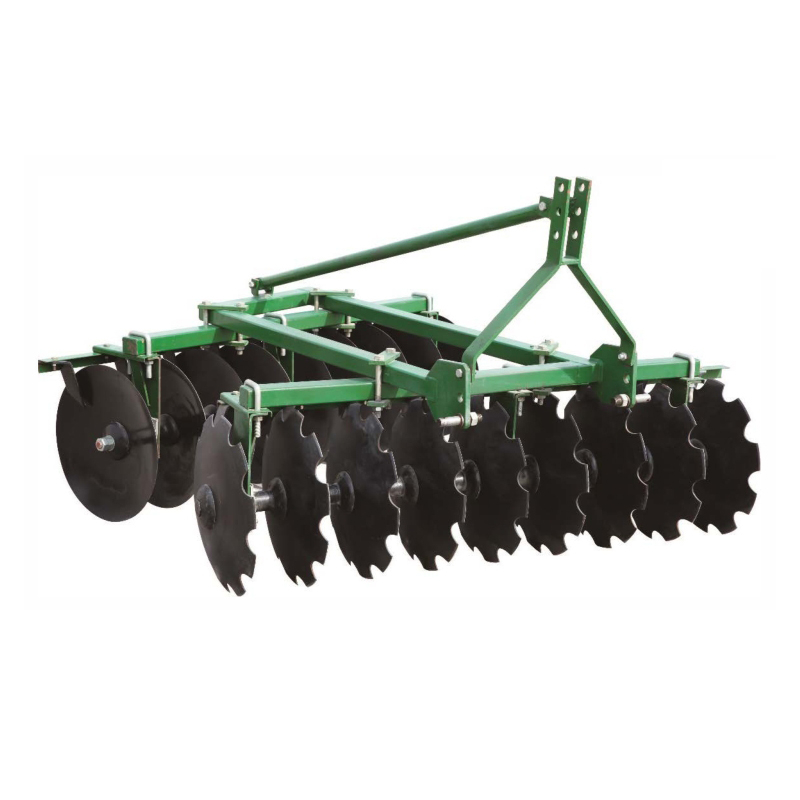

The 1BJX series middle-duty disc harrow is adopted a whole frame made of quadrangular steel tubes by welding. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. It is suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing.
Model | 1BJX-1.7 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 | 1BJX-3.0 |
Working Width (m) | 1.7 | 2.0 | 2.2 | 2.4 | 2.5 | 3.0 |
Working Depth (mm) | 140-180 | |||||
Number of Disc (Pcs) | 16 18 20 22 24 28 | |||||
Size of Disc (mm) | 560x4 | |||||
Disc Spacing (mm) | 230 | |||||
Matched Power (hp) | 40-50 | 50-65 | 55-70 | 65-80 | 70-90 | 80-100 |
Linkage | Three Point Mounted | |||||
