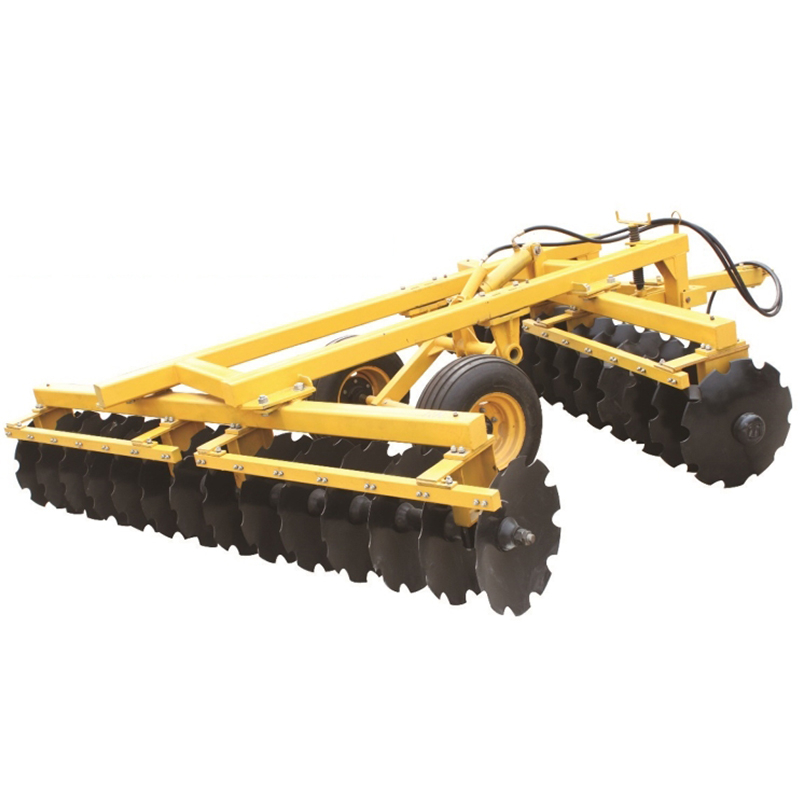

1BZN Extra-heavy Off-set Disc Harrow | ||||||
The 1BZN series extra-heavy-duty off-set disc harrow is mainly used for cleaning away stubble of pants before tillage, or uncultivated land and in sticky heavy clay soil field. It could be used as a plow for primary tillage in dry cultivated field. | ||||||
Model | 1BZN-2.0 | 1BZN-2.3 | 1BZN-2.5 | 1BZN-3.0 | 1BZN-3.5 | 1BZN-4.0 |
Working Width (m) | 2.0 | 2.3 | 2.5 | 3 | 3.5 | 4 |
Working Depth (mm) | 180-250 | |||||
Number of Disc (Pcs) | 16 | 18 | 20 | 24 | 28 | 32 |
Size of Disc (mm) | 600x6 (also can choose 710x8) | |||||
Tire | 10-16.5 | |||||
Ground Clearance (mm) | ≥ 240 | |||||
Linkage | Trailed | |||||
Matched Power (hp) | 65-80 | 75-100 | 80-110 | 80-120 | 100-140 | 140-180 |
