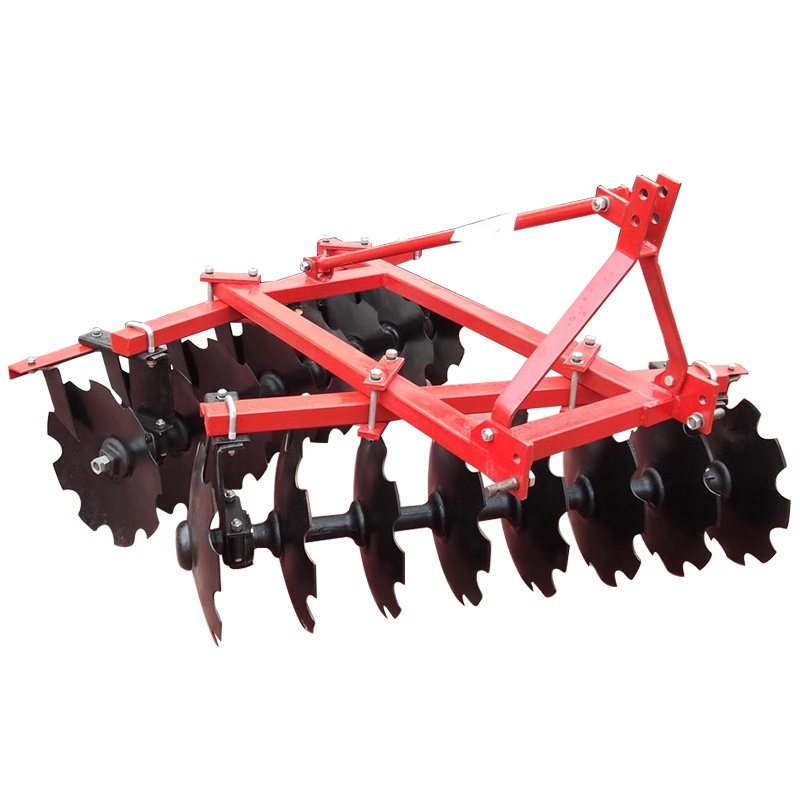

Mounted Light Disc Harrow The 1BQX series mounted light-duty disc harrow is suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. | |||||||
Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 | 1BQX-2.7 |
Working Width (m) | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.3 | 2.7 |
Working Depth (mm) | 80-140 | ||||||
Number of Disc (Pcs) | 12 | 14 | 16 | 18 | 20 | 24 | 28 |
Size of Disc (mm) | 460x3 | ||||||
Disc Spacing (mm) | 200 | ||||||
Productivity (ha/h) | 0.7 | 0.84 | 0.97 | 1.1 | 1.3 | 1.5 | 1.7 |
Linkage | Three Point Mounted | ||||||
Matched Power (hp) | 12--20 | 14-25 | 22-30 | 30-40 | 35-45 | 50-60 | 55-70 |
