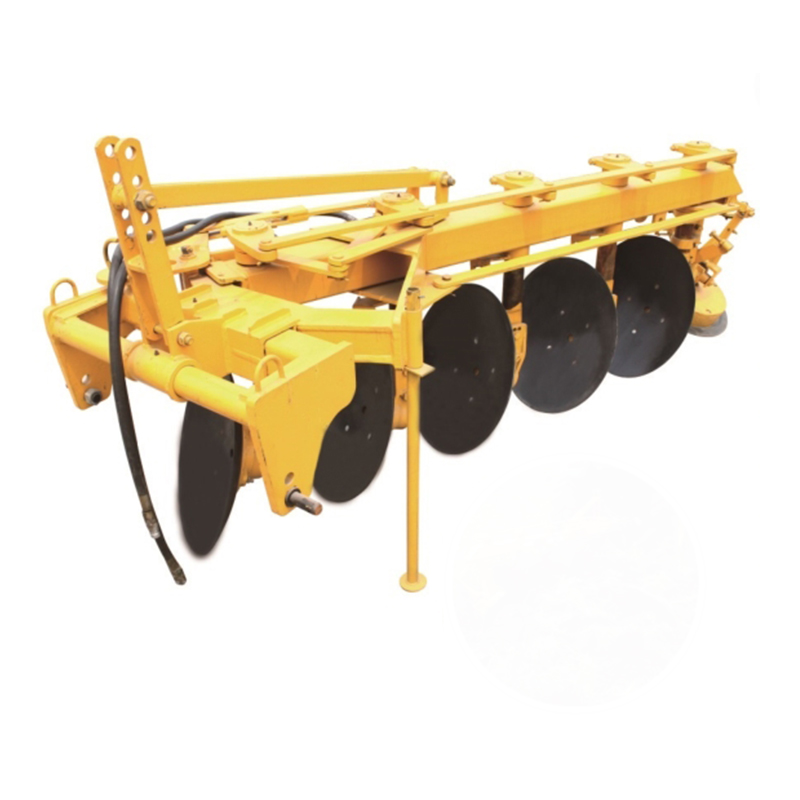

Hydraulic Reversible Disc Plough
The 1LY(SX) series hydraulic reversible disc plough is suitable for working on terrace fields and small piece of farming land. It can be adjusted for the working width and direction on level by the tractor, the operation is smooth without any trouble for tractor.
Model | 1LY (SX)-325 | 1LY (SX)-425 | 1LY (SX)-525 | 1LY (SX)-625 |
Working Width (m) | 0.75 | 1.0 | 1.25 | 1.5 |
Working Depth (mm) | 300 | |||
Number of Disc (Pcs) | 3 | 4 | 5 | 6 |
Size of Disc (mm) | 660x6 | |||
Linkage | Three Point Mounted Type II | |||
Matched Power (hp) | 65-80 | 80-100 | 100-120 | 120-150 |
