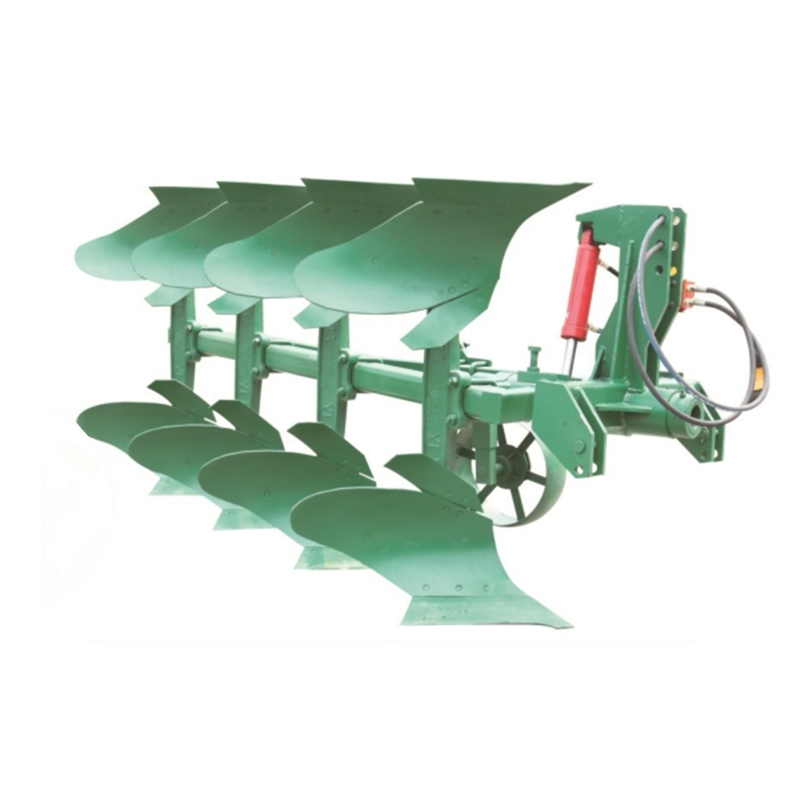

| 1LYF Hydraulic Reversible Plow | ||||
| The 1LYF series reversible share plow is applicable for dry sand soil, with whole hanging, simple structure, wide application and good working. | ||||
| Model | 1LYF-220 | 1LYF-320 | 1LYF-420 | 1LYF-520 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 200 | |||
| Working Depth (mm) | 180-250 | |||
| Flip Mode | Mechanical | |||
| Matched Power (hp) | 20-30 | 25-40 | 40-50 | 60-80 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-225 | 1LYF-325 | 1LYF-425 | 1LYF-525 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 250 | |||
| Working Depth (mm) | 180-250 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 25-35 | 40-50 | 50-60 | 60-80 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-227 | 1LYF-327 | 1LYF-427 | 1LYF-527 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 270 | |||
| Working Depth (mm) | 160-220 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 25-35 | 40-50 | 50-60 | 60-80 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-230 | 1LYF-330 | 1LYF-430 | 1LYF-530 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 300 | |||
| Working Depth (mm) | 240-300 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 40-50 | 60-80 | 90-100 | 110-130 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-235 | 1LYF-335 | 1LYF-435 | 1LYF-535 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 350 | |||
| Working Depth (mm) | 270-300 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 40-60 | 60-80 | 100-120 | 120-140 |
| Linkage | Three Point Mounted | |||
| 1LYF Hydraulic Reversible Plow | ||||
| The 1LYF series reversible share plow is applicable for dry sand soil, with whole hanging, simple structure, wide application and good working. | ||||
| Model | 1LYF-220 | 1LYF-320 | 1LYF-420 | 1LYF-520 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 200 | |||
| Working Depth (mm) | 180-250 | |||
| Flip Mode | Mechanical | |||
| Matched Power (hp) | 20-30 | 25-40 | 40-50 | 60-80 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-225 | 1LYF-325 | 1LYF-425 | 1LYF-525 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 250 | |||
| Working Depth (mm) | 180-250 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 25-35 | 40-50 | 50-60 | 60-80 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-227 | 1LYF-327 | 1LYF-427 | 1LYF-527 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 270 | |||
| Working Depth (mm) | 160-220 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 25-35 | 40-50 | 50-60 | 60-80 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-230 | 1LYF-330 | 1LYF-430 | 1LYF-530 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 300 | |||
| Working Depth (mm) | 240-300 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 40-50 | 60-80 | 90-100 | 110-130 |
| Linkage | Three Point Mounted | |||
| Model | 1LYF-235 | 1LYF-335 | 1LYF-435 | 1LYF-535 |
| Number of Ploughbody (Pcs) | 2 | 3 | 4 | 5 |
| Single Ploughbody Working Width (mm) | 350 | |||
| Working Depth (mm) | 270-300 | |||
| Flip Mode | Hydraulic | |||
| Matched Power (hp) | 40-60 | 60-80 | 100-120 | 120-140 |
| Linkage | Three Point Mounted | |||
