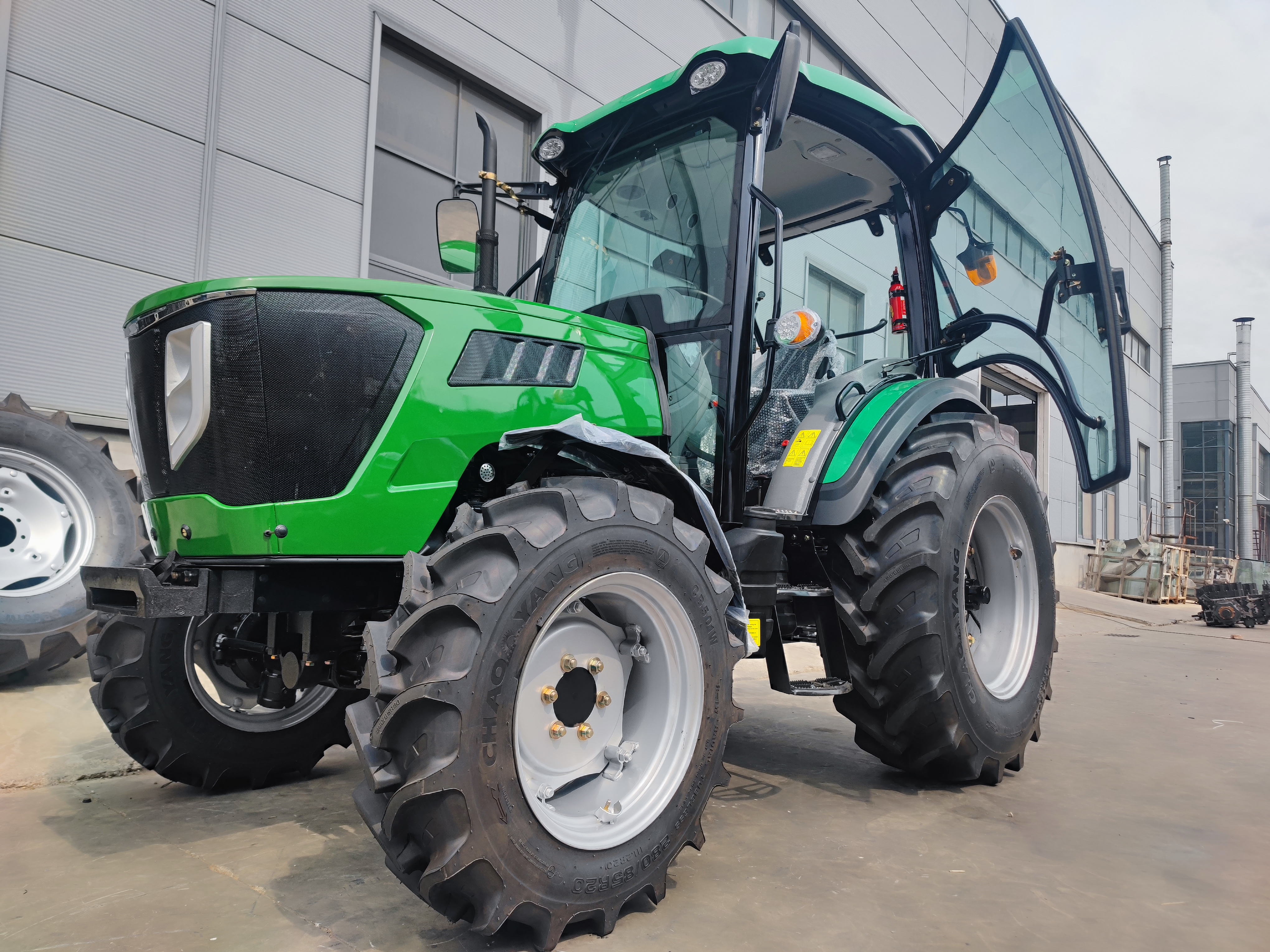

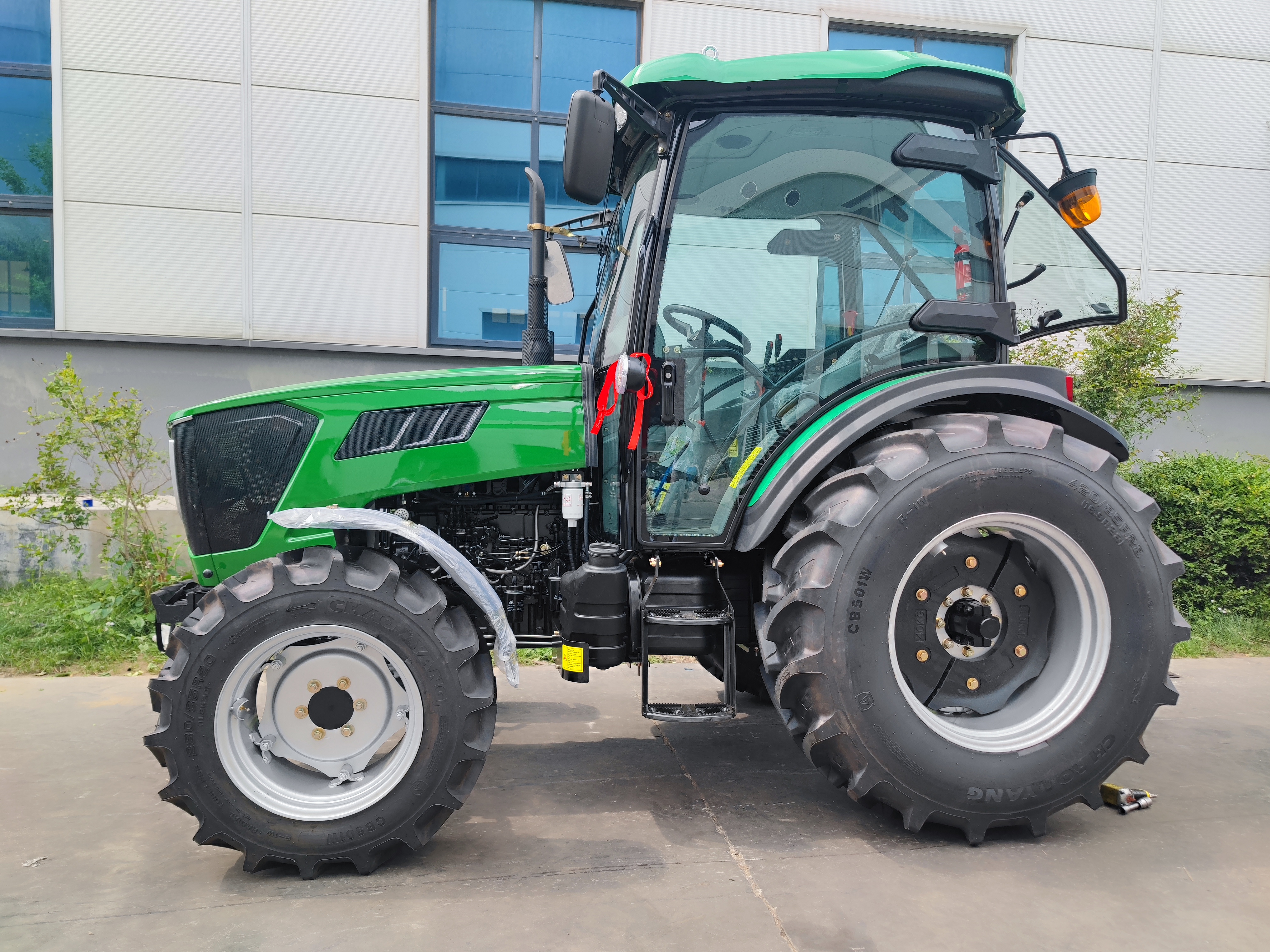

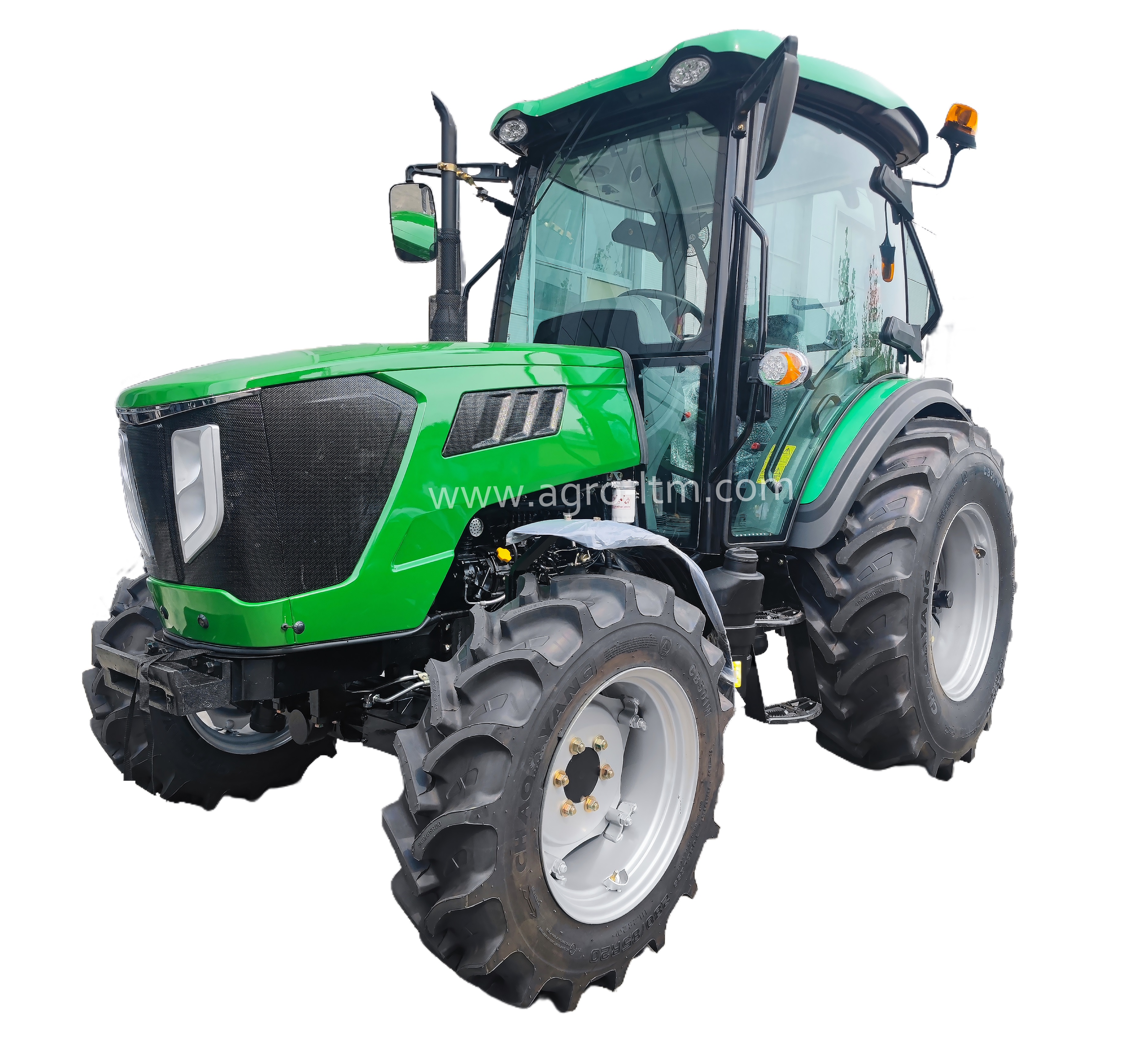

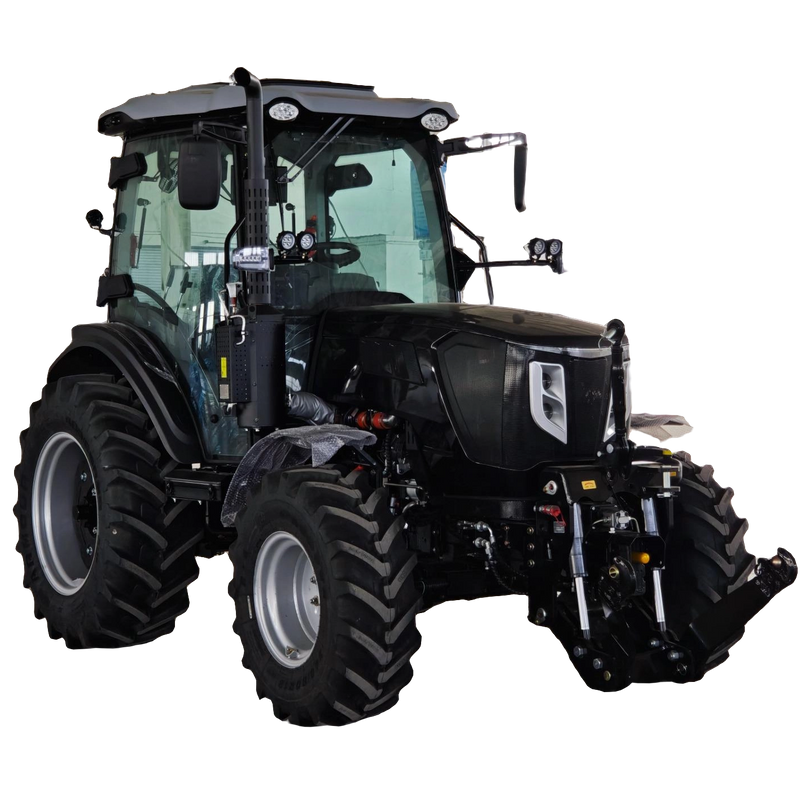

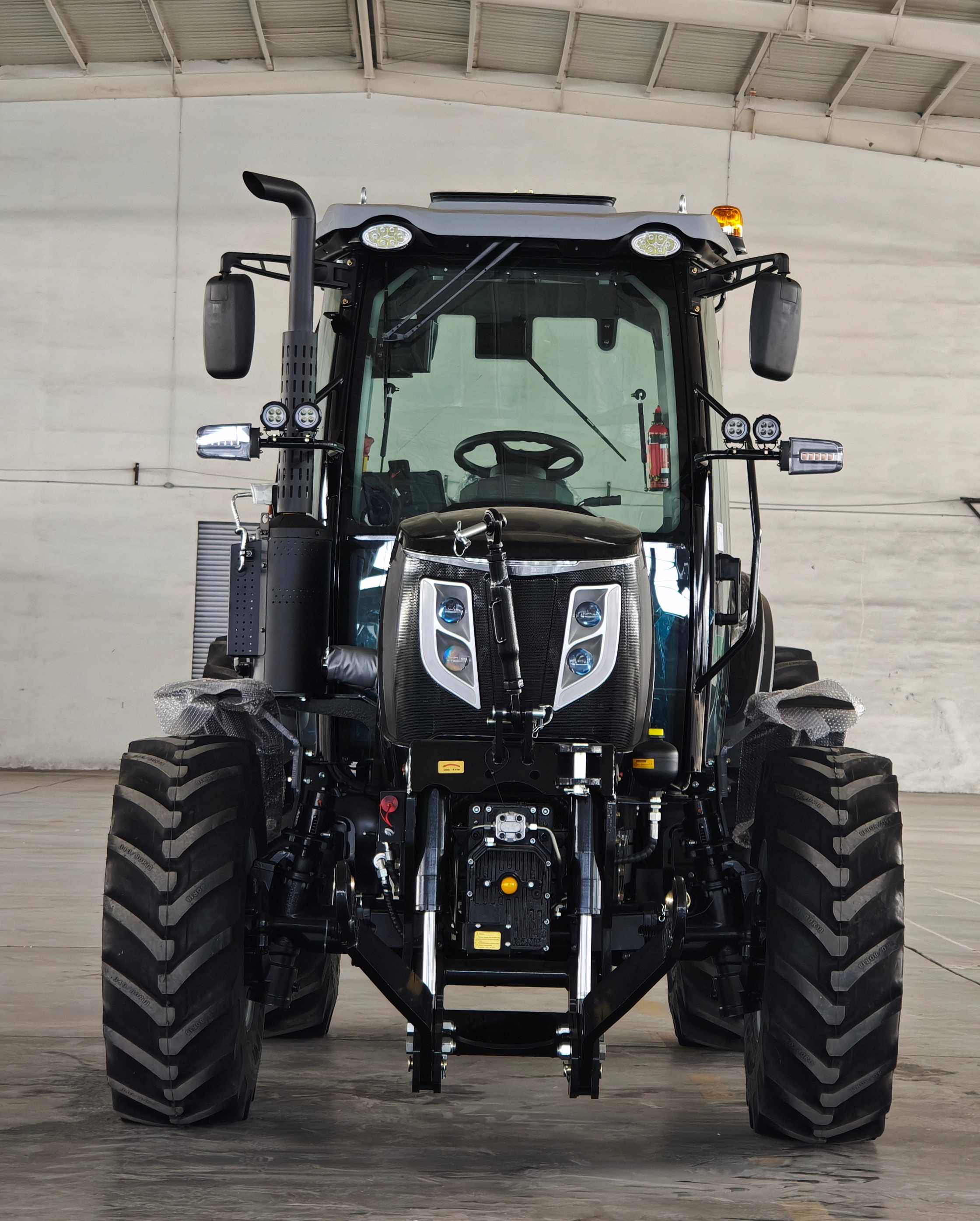

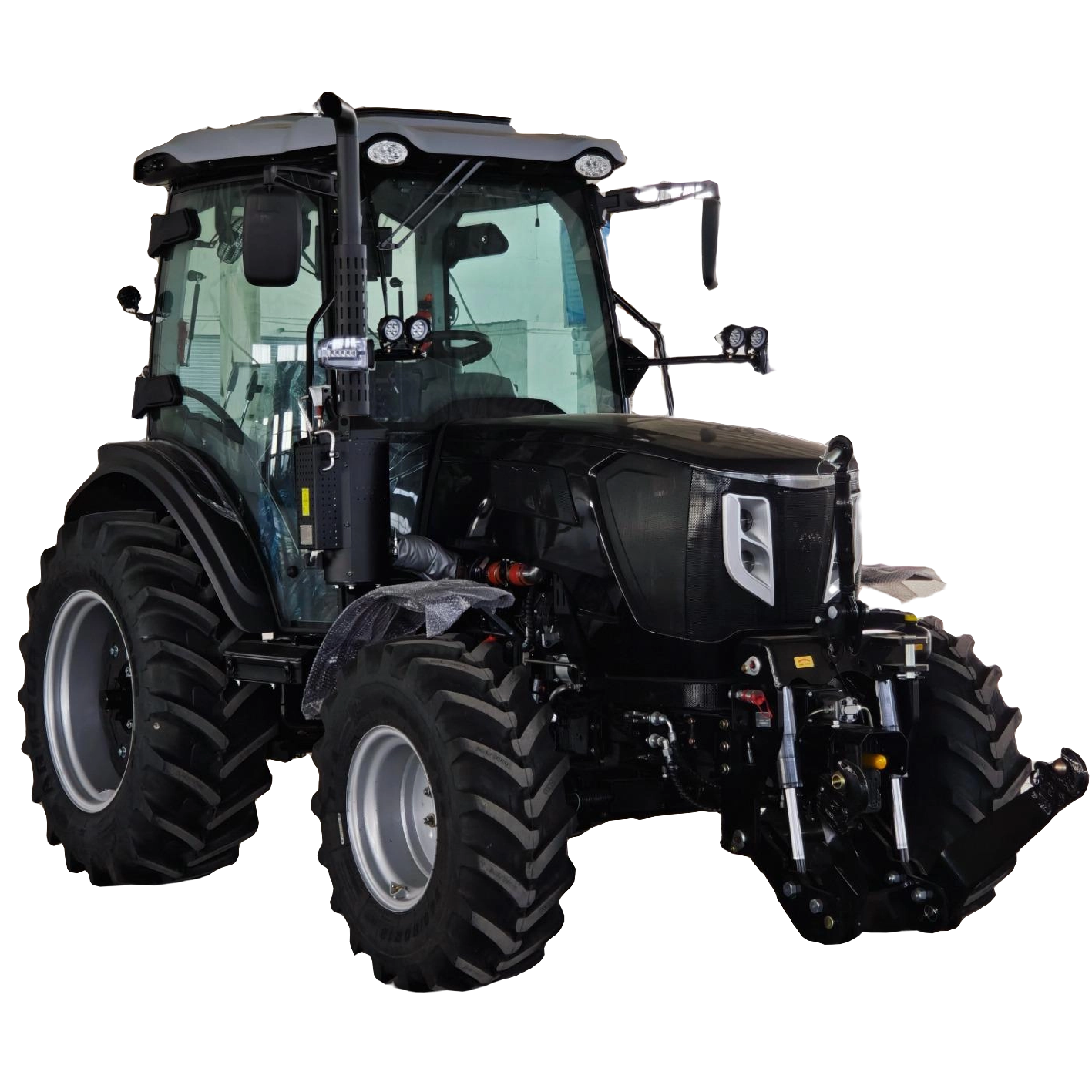

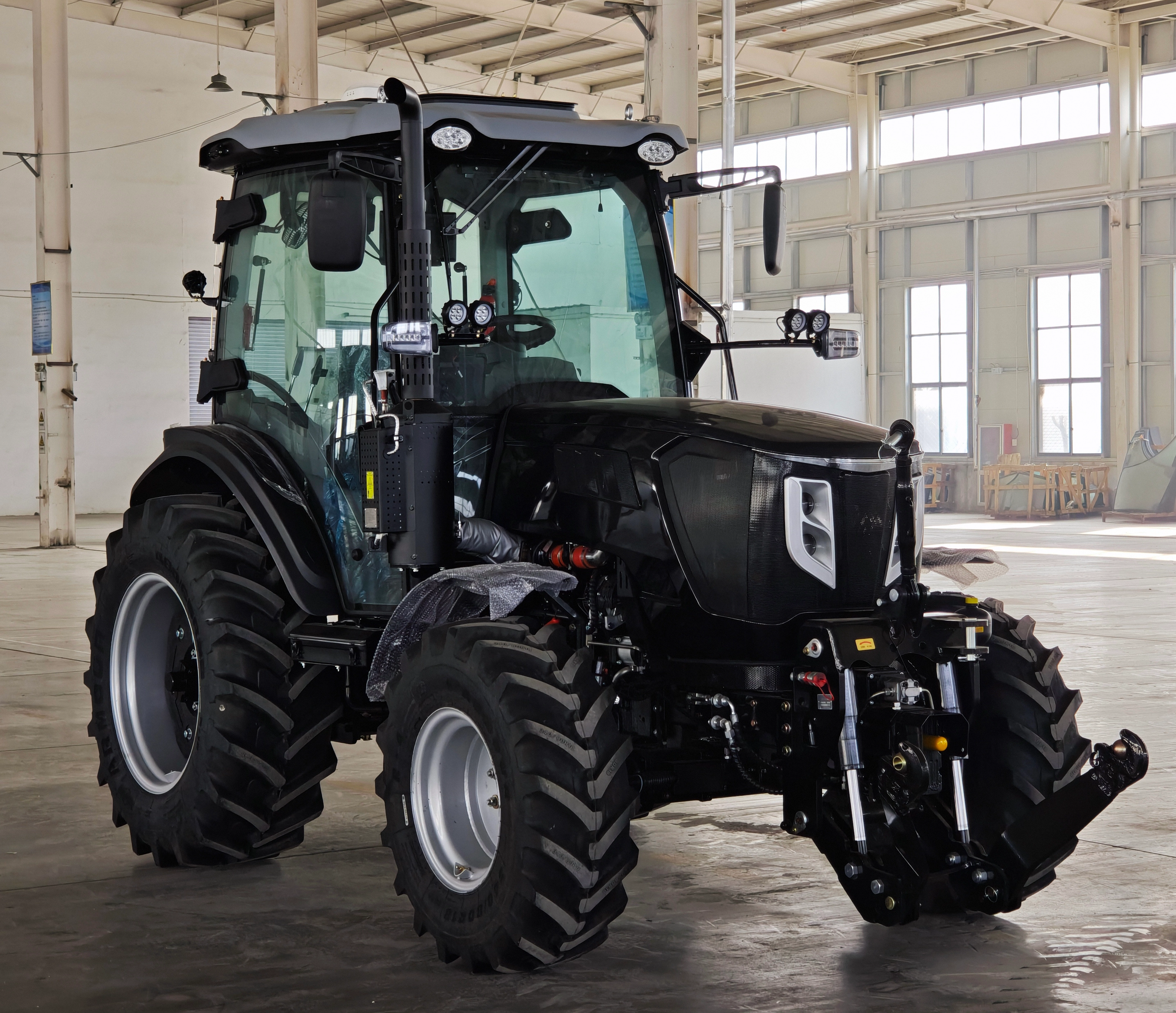

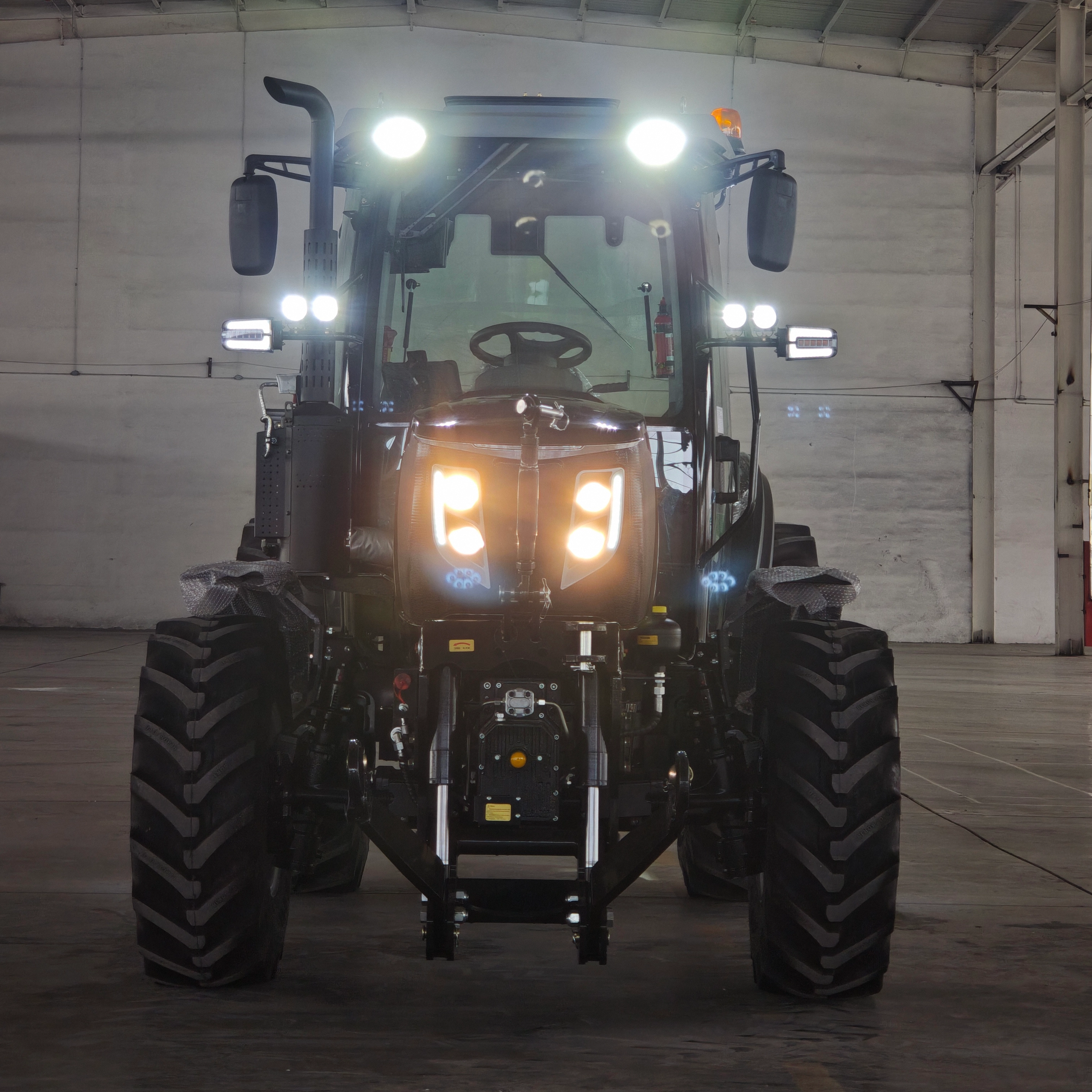

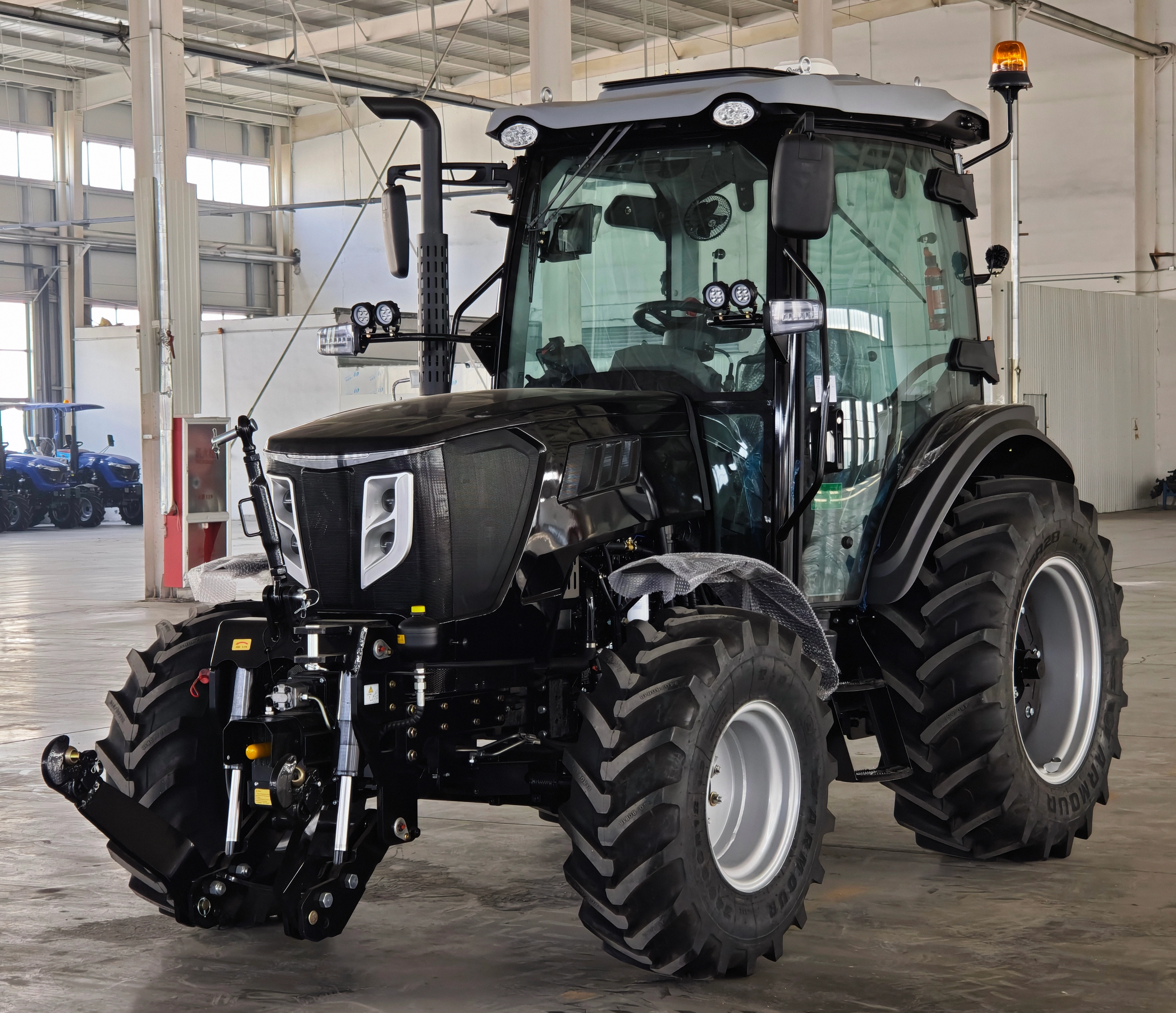

LTM 754HP
LTM
Product Parameters
Tractor Model | / | LTM 754HP |
Engine Model | / | Yuchai |
Engine power | KW/HP | 55.1/75 |
Cylinder | / | 4 |
Displacement | L | 2.4 |
Engine Emission | / | Euro V |
Torque | N M | >=260 |
Transmission Gearshift | / | 12+12 synchronize shift |
Forward Speed Range | Km/h | 2. 46-33.61 |
Backward Speed Range | Km/h | 2. 13-32.69 |
PTO speed | R/min | 540/1000 |
Lifting power | KN | 13 |
Three-point Linkage type | / | Category I or II |
Hydraulic output flow | L/min | 34 |
Number of valves | Set | 2 |
Oil tank | L | 75 or 140 |
Length*width*height | mm | 4105*1830*2910(CAB) |
Wheel track(Front) | mm | 1400-1550 |
Wheel track(Rear) | mm | 1300-1800 |
Ground clearance | mm | 350 |
Turning radius | m | 3.5-4.1 |
Weight | kg | 2800(ROPS) or 3050 (CAB) |
Tire size | R1 | 8.3-20,12.4-28 |
