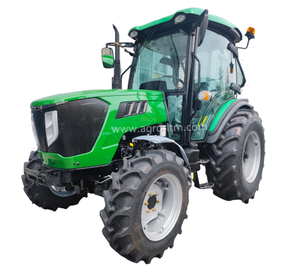

LTM 804HP

• Gearbox: Standard configuration: 12F+12R synchro shift
speed synchronized shift is optional and it has features like energy saving, reliable and comfortable.
• Driving Cab:Standard configuration is RO PS and cab ,and compatible configurations with European design, fully-wrapped
interior, steering wheel adjustable fore and aft, car air conditioning system and luxurious seat which fully improves the control
comfort.
• Engine: B series standard configuration engine has passed European EPA certification and EURO Stage III certification.
• Clutch: Standard configuration 11-12 inch dual clutch is equipped with a friction disk made of special ceramic material with high
reliability.
• Tires : Paddy land tires, OTR tires, meadow tires are optional.
• Electronic system: Taking rainy and humid environments intc consideration, it is equipped with electrical wirings and connectors
with high sealing performance so as to extend the service life of the electronic system.
• Floor: flat floor, side-placed operating lever and suspension pedal are optional .which improves controcomfort
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
  • LTM 804HP

  • LTM

QUOTATION LIST FOR 804 TRACTOR



Tractor

Parameters

Model

804

Drive Type

4WD

Overall Dimensions L×W×H(mm):

3980x1760x2800

Wheel Track (mm)

Front

1400/1450/1500/1550

Rear

1300-1800

Wheel Bass(mm)

2010

Ground Clearance (mm)

308

Rated Traction Force(N)

13000

Construction Mass(kg)

2900

Theoretical Speed (km/h)

Forward

2.46—32.73

Reverse

2.15—28.69

Engine

Specifications

Model


Type

4-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

59/80

Rated Speed (rpm)

2400

Bore×Stroke (mm)

90×100

Total Displacement(L)

2.8

Drive

System

Clutch

11" dual-stage

Gear Box

(1+1)×4x3

Traveling

Mechanism

Tyre

Front

11.2-24

Rear

18.4-30

Steering Gear

Full Hydraulic Steering

Brake

Disc type

Working

Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

11000

3-Point Suspension

Category:II

P.T.O Shaft

Rotating

Speed (rpm)

540/760/1000

Spline Size

6-35Rectangular Spline
