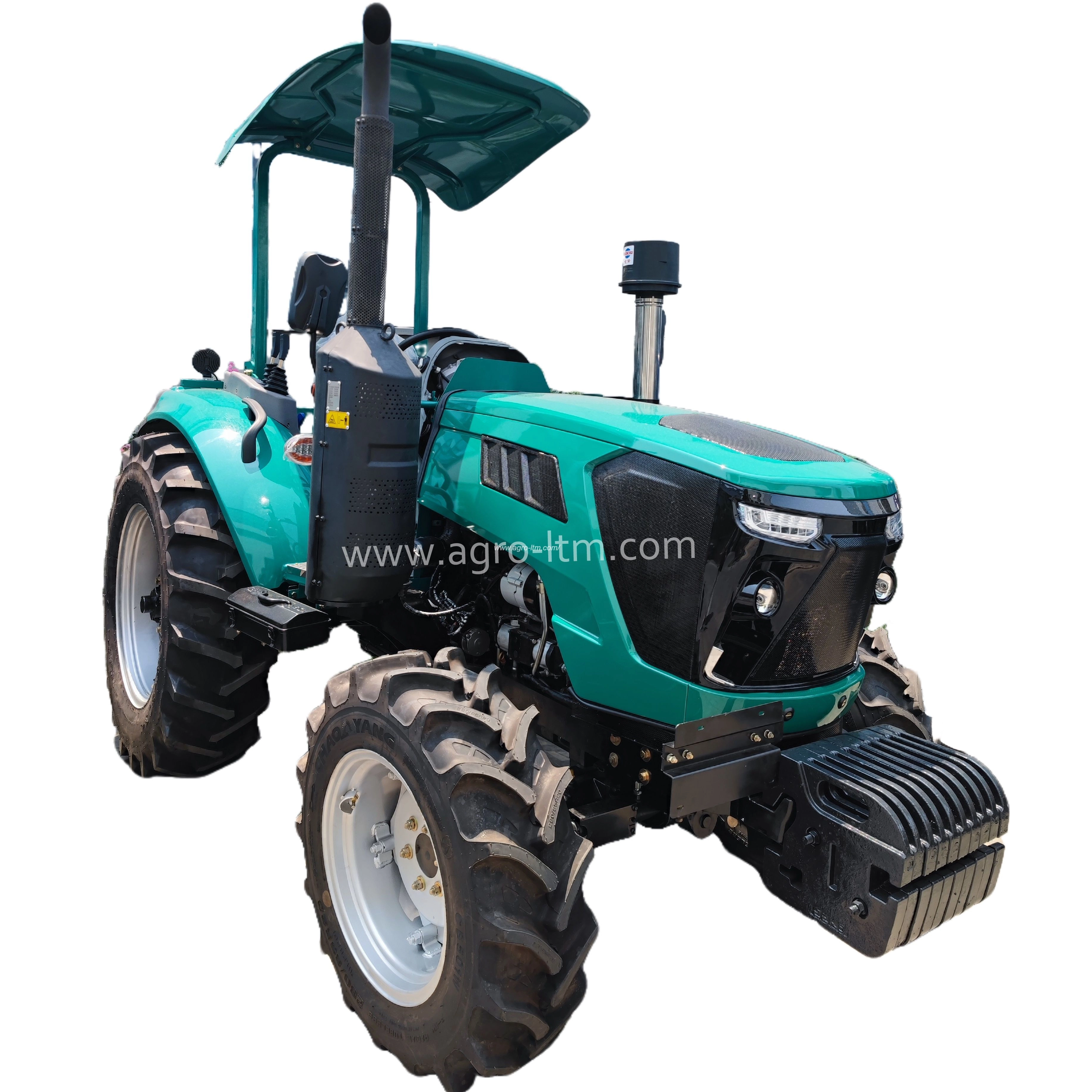

QUOTATION LIST FOR 354 TRACTOR
Tractor Parameters | Model | 354 | |
Drive Type | 4WD | ||
Overall Dimensions L×W×H(mm): | 3500x1550x2450 | ||
Wheel Track (mm) | Front | 1300/1400/1450 | |
Rear | 1300-1700 | ||
Wheel Bass(mm) | 1805 | ||
Ground Clearance (mm) | 330 | ||
Construction Mass(kg) | 2200 | ||
Theoretical Speed (km/h) | Forward | 1.97-29.67 | |
Reverse | 2.15—28.69 | ||
Engine Specifications | Model | ||
Type | 4-Cylinder Vertical,water cooled,4 stroke cycle | ||
Rated Power(kw/hp) | 18.4/25 | ||
Rated Speed (rpm) | 2400 | ||
Bore×Stroke (mm) | 90×100 | ||
Total Displacement(L) | 3.55 | ||
Drive System | Clutch | 10" dual-stage | |
Gear Box | 8+2/8+8 | ||
Traveling Mechanism | Tyre | Front | 6.5-16/11.2-24 |
Rear | 7.5-16/12.4-24 | ||
Steering Gear | Full Hydraulic Steering | ||
Brake | Disc type | ||
Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 7800 |
3-Point Suspension | Category:I | ||
P.T.O Shaft | Rotating Speed (rpm) | 540/720 | |
Spline Size | 6-∮35Rectangular Spline | ||
