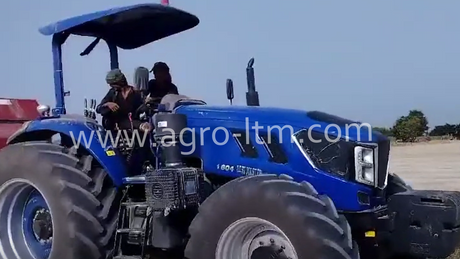

LTM 504HP
LTM
QUOTATION LIST FOR 504 TRACTOR
Tractor Parameters | Model | 504 | |
Drive Type | 4WD | ||
Overall Dimensions L×W×H(mm): | 3180x1560x2600 | ||
Wheel Track (mm) | Front | 1100-1600 | |
Rear | 1100-1600 | ||
Wheel Bass(mm) | 1800 | ||
Ground Clearance (mm) | 308 | ||
Rated Traction Force(N) | 8800 | ||
Construction Mass(kg) | 1670 | ||
Theoretical Speed (km/h) | Forward | 2.46—32.73 | |
Reverse | 2.15—28.69 | ||
Engine Specifications | Model | 493 | |
Type | 4-Cylinder Vertical,water cooled,4 stroke cycle | ||
Rated Power(kw/hp) | 37/50 | ||
Rated Speed (rpm) | 2400 | ||
Bore×Stroke (mm) | 90×100 | ||
Total Displacement(L) | 2 | ||
Drive System | Clutch | 9" dual-stage | |
Gear Box | 8+8 | ||
Traveling Mechanism | Tyre | Front | 260/70R16 |
Rear | 320/85R24 | ||
Steering Gear | Full Hydraulic Steering | ||
Brake | Disc type | ||
Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 6800 |
3-Point Suspension | Category:I | ||
P.T.O Shaft | Rotating Speed (rpm) | 540/720 | |
Spline Size | 6-∮35Rectangular Spline | ||
